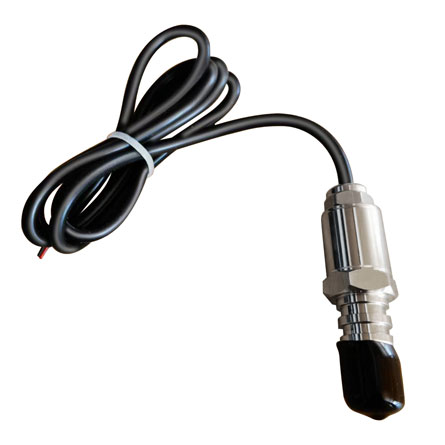

The high - temperature pressure sensor's core component is a sputtered thin - film sensitive core, which can convert the measured pressure into an electrical signal. It has a wider temperature range. Meanwhile, it adopts the sputtering process and full compensation process. After high - and low - temperature cyclic aging and fatigue aging, it has good long - term stability. The housing is a stainless - steel laser - welded sealed structure, suitable for both dynamic and static pressure measurement.
Measuring range
80~150MPa
Accuracy class
（1%/0.5%/0.2%/0.1%）F·S
Operating voltage
5V、9~36V
Signal output
0.5~4.5V、0~5V、0~10V、4~20mA
Pressure interface
M16*2
Electrical interface
direct lead
Operating temperature
-40℃~150℃
Compensation temperature
10℃~150℃
Long-term stability
0.1%F·S/year
Overload pressure
≥200%F·S
IP rating
IP65
High dynamic frequency response, stable zero point, high temperature resistance, small temperature drift, vibration resistance, shock resistance, high stability, and high reliability.
