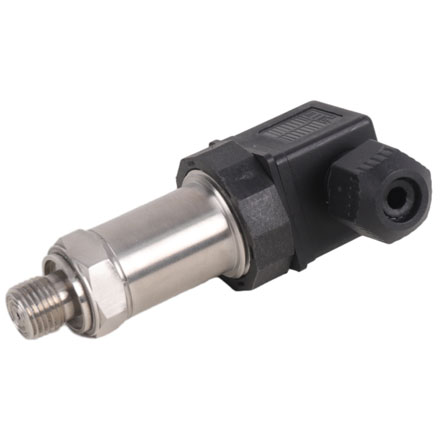

Using internationally advanced alloy sputtering technology and etching technology, and having undergone strict high - and low - temperature cycling and pressure pulse fatigue treatments during the production process, it features high dynamic frequency response, stable zero point, high temperature resistance, small temperature drift, vibration resistance, shock resistance, high stability, high reliability, and high splash and dust protection.
Measuring range
1~60MPa
Accuracy class
（1%、0.5%、0.2%、0.1%）F·S
Operating voltage
5V、9~35V
Signal output
0.5~4.5V、0~5V\0~10V、4~20mA
Pressure interface
G1/4A
Electrical interface
Hirschmann connector
Operating temperature
-40℃~150℃
Compensation temperature
-25℃~110℃
Long-term stability
0.1%F·S/year
Overload pressure
≥200%F·S
IP rating
IP65
High dynamic frequency response, stable zero point, high temperature resistance, small temperature drift, vibration resistance, shock resistance, high stability, and high reliability.
