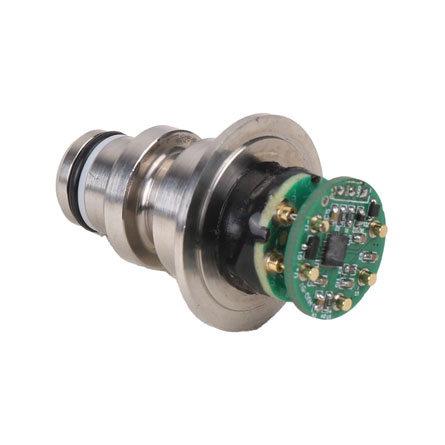

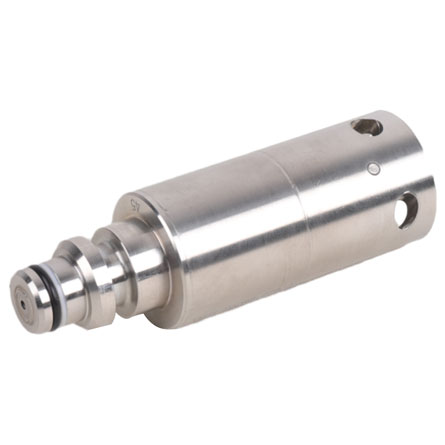

This model is a mine-used intrinsically safe pressure sensor, which holds an explosion-proof certificate and a safety certificate for mine products. The product integrates processes such as sputtering thin films, precision etching, and laser welding. During the production process, it has undergone strict high - and low - temperature cycling and pressure pulse fatigue treatments.
Measuring range
60MPa
Accuracy class
0.2%F·S
Operating voltage
12V
Signal output
0.5V~4.5V
Pressure interface
DN10
Electrical interface
GPD60 connector
Operating temperature
-40℃~150℃
Compensation temperature
-25℃~80℃
Long-term stability
≤0.1%F·S/year
Overload pressure
≥200%F·S
IP rating
IP68
High dynamic frequency response, stable zero point, high temperature resistance, small temperature drift, vibration resistance, shock resistance, high stability, and high reliability.
